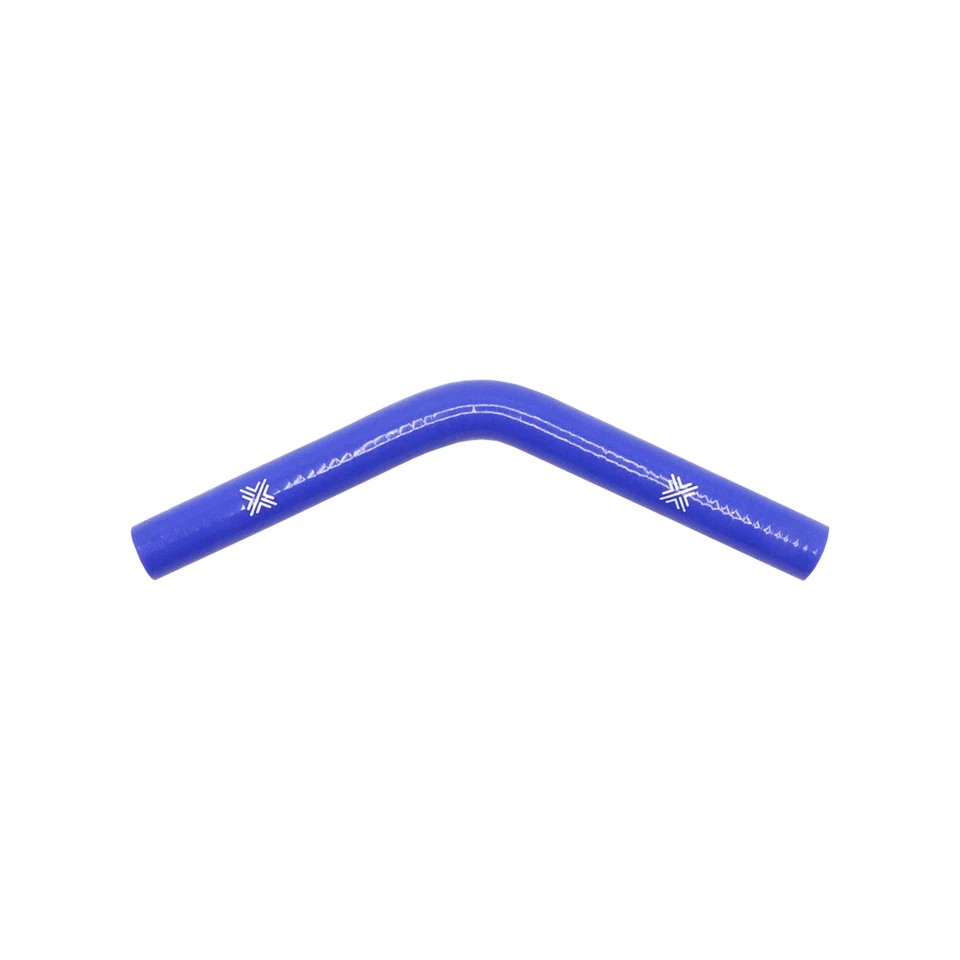

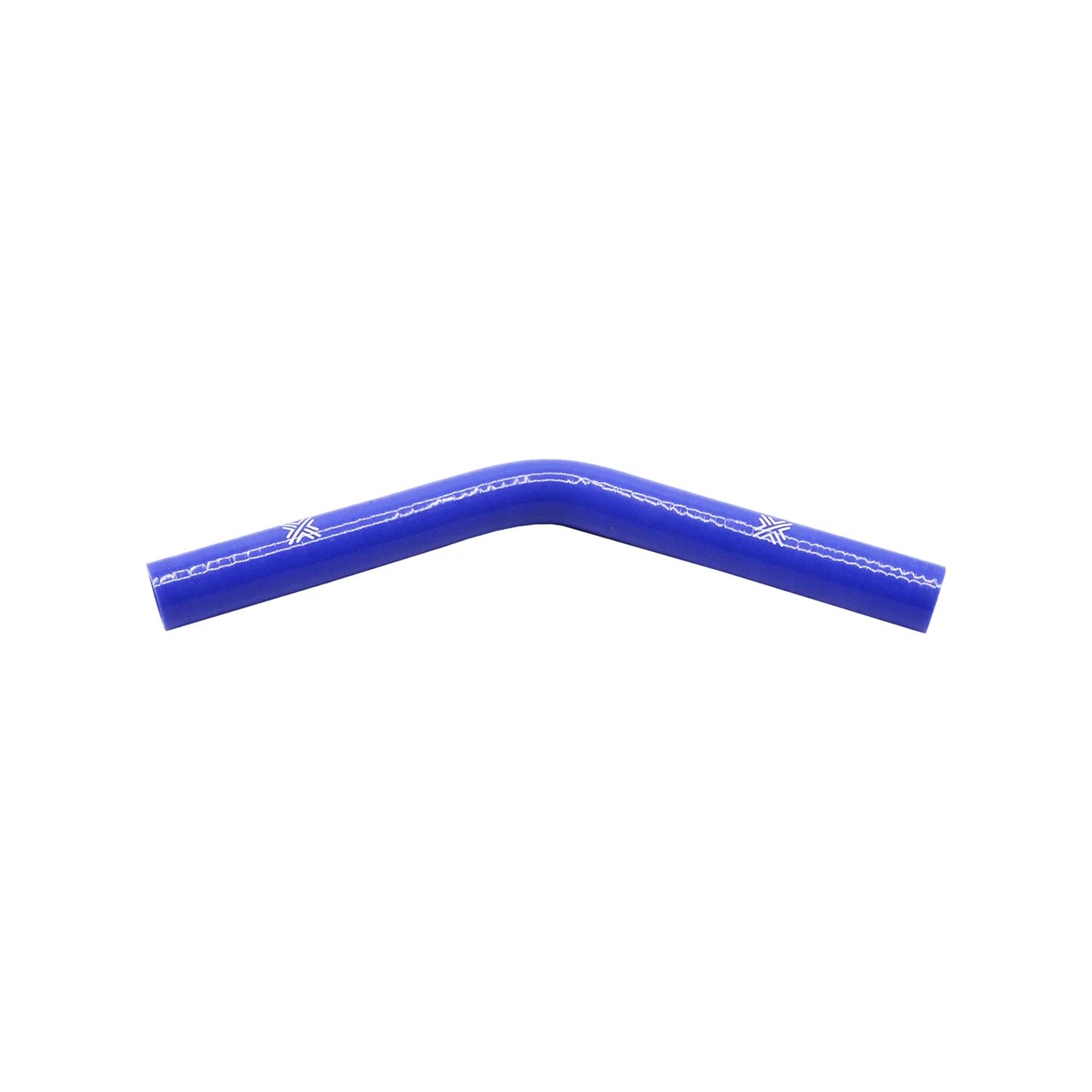

Pipercross Blue 45° 16mm ID 152mm leg length silicone hose

Pipercross brand premium silicone elbows. For 40 years, Pipercross have been at the forefront of British engineering, producing high-performance parts that are trusted by enthusiasts and professionals throughout Europe. Our heritage is rich in tradition of innovation and a relentless pursuit of excellence.

Applications

• Joining your intake pipe to the throttle body assembly, air metering assembly, intercooler, BOV pipe, or turbo inlet/outlet.
• Custom compressor, intercooler or inlet piping for turbo/supercharged car
• Custom cold air intake for nonturbo car
• Replacement of all factory rubber parts
• These silicone parts can be used in trucks, recreational vehicles, boats, or anything else with an engine.

Please note the following when you order silicone parts online. Some vendors have started counting the layers of silicone instead of the layers of reinforcement when talking about the ply. For example, a 3-ply reducer has four layers of silicone plus three layers of reinforcement fabric. Some vendors might incorrectly call this a 4-ply reducer because of the four layers of silicone. All of our silicone parts are now of Genuine 4-Ply construction - that's 5 layers of silicone plus 4 layers of reinforcement for 9 total layers!

Product Specifications

Construction

Genuine 4-ply Silicone (5 silicone layers plus 4 reinforcement layers = 9 total layers!)

Installation

Installer can cut silicone parts down to fit with a razor

Heat tolerance

-40 degrees to 392 degrees Fahrenheit

Burst Pressure

200 PSI

Certification

Meets requirements of SAE 20R1 class A.

Working Pressure

50 PSI

Wall Size

4 mm - 5 mm

Compatibility

Compatible with antifreeze/coolant
